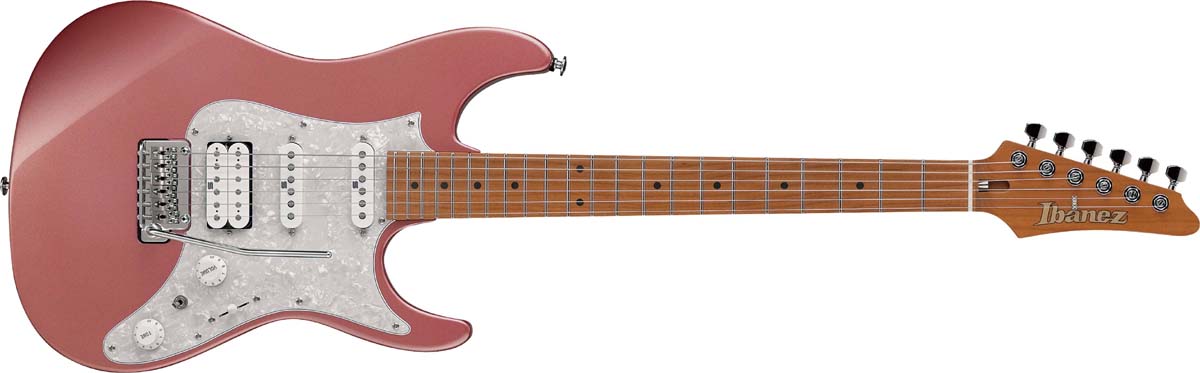

AZ2204HRM - Ibanez releases a new series of guitars that are in my opinion aimed at the maturing player that is growing out of the pointy headstock lines, and whatever other customers they can pull in. But I believe the intention is to retain those brand loyal customers as they age by giving them a much more mature look, and honestly when I look at these I see a Suhr Modern, which many players have "matured into". These are available in 24 and 22 fret models and feature stainless frets on a roasted neck using a proprietary process. Lots more information in the official sales copy below the specs.
AZ2204HRM_F2000001 - The First guitar built in the new decade.
AZ Oval C S-TECH WOOD® Roasted Maple 22 fret neck
305mm Radius S-TECH WOOD® Roasted Maple fretboard w/Black dot inlay
20.5mm at the 1st, 22.5mm at the 12th
Gotoh® H.A.P®-M locking machine heads
Luminescent side dot inlay
Jumbo Stainless steel frets
42mm Bone nut
Gotoh® T1802 tremolo bridge
Bridge features machined Titanium saddles and steel block
Seymour Duncan® Hyperion™ (S) neck pickup
Seymour Duncan® Hyperion™ (S) neck pickup
Seymour Duncan® Hyperion™ (H) bridge pickup
dyna-MIX 10 switching system w/Alter switch
HRM - Hazy Rose Metallic

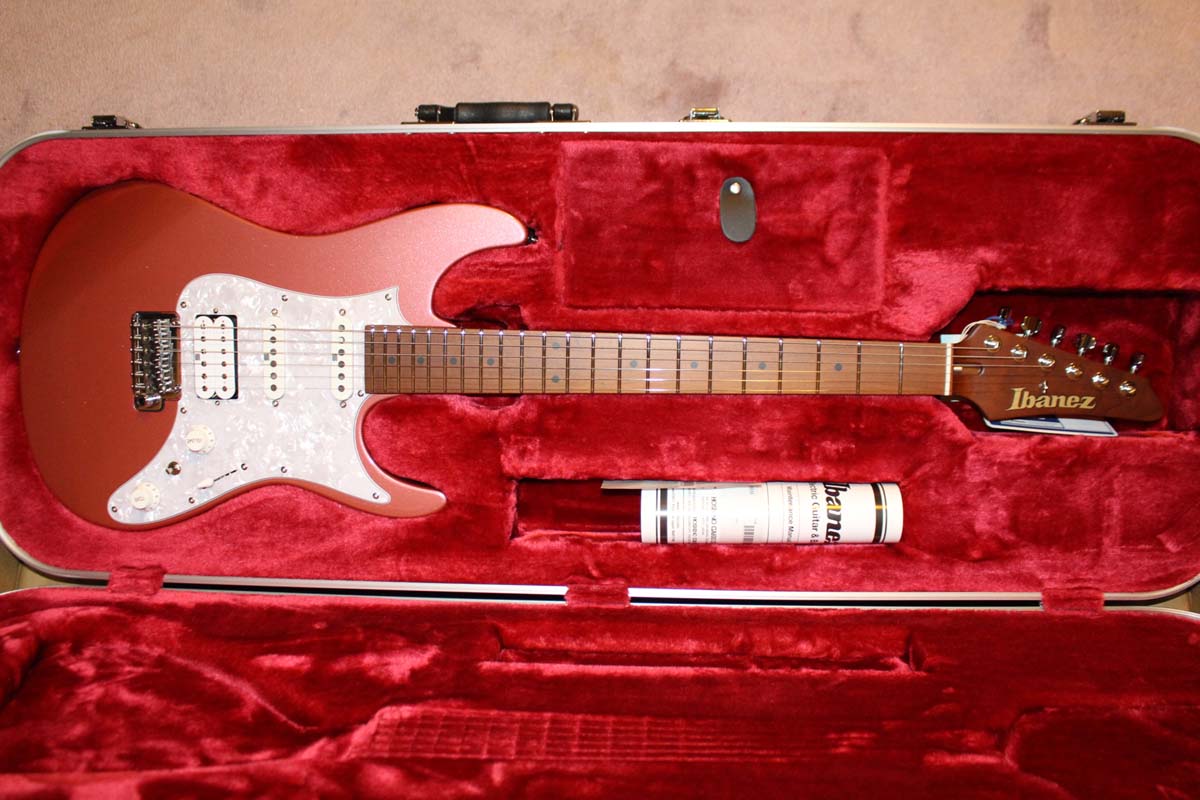

$2666.65 List price - includes Ibanez Hardshell case.
$1999.99 Suggested Minimum Advertised Price
Continental US shipping is included.
Bronze - Cash Price - AVAILABLE
Bronze - Card Price - AVAILABLE
Silver - Cash Price - $2003 - Shipped US
Silver - Card Price - $2083 - Shipped US
Gold - Cash Price - $2105
Gold - Card Price - $2189
Platinum - Cash Price - $2207
Platinum - Card Price - $2295
At Ibanez, we have always made it a point to study and understand how guitar playing evolves and progresses with music trends over time. Currently, we are seeing an explosion of young contemporary guitarists pushing their playing techniques into exciting new directions. We are viewing this trend as the beginning of a third phase of guitar playing.
All of us at Ibanez challenge ourselves as guitar designers to step up and answer the needs of this third phase. We found that, in order to fully grasp the expanding range of musical expression created, we must consider the guitar not just as an isolated device, but as an extension of the guitarist’s body. If we were to give this phenomenon a name, it would be “Synchronizing Guitars and Players.”
In launching the AZ series, our aim was not to merely create a completely new guitar model, but to sculpt a great guitar that can foster the potential of the modern ‘third phase’ while maintaining traditional elements. Even though Ibanez is thought of as a modern guitar brand, we have decades of accumulated knowledge and a history of pushing boundaries. The AZ series carries with it all of the hallmarks of these tried and tested Ibanez qualities: the smooth oval neck grip, the well-balanced asymmetrical body shape, and a neck heel that allows unrivaled playability. It also features details such as a new tremolo bridge, as well as new pickups developed in collaboration with Seymour Duncan®. All of these elements help the AZ push the existing boundaries of playability and sound even further.
We always strive to make our guitars with the finest materials and parts, yet we know that collecting new parts and materials alone do not make a great guitar. Rather, exquisite guitars are made through the processes of examining, testing, understanding, then finally synchronizing these materials together. The harmonic balance between the bridge and pickups, nut and machine heads, neck and fret material, all work together in order to help guitarists create their desired sound. From A to Z, there is no aspect of guitar making that we ever overlook. This tradition has been passed down masterfully to the AZ series.
At first glance, the AZ series may seem like an enigma to some. The magic of this new series is not something that may be apparent by just visual observation. The magic, however, becomes instantly apparent once an AZ model is played. The AZ series represents the future of guitar playing and we welcome you to play one and see for yourself.
AZ Modern Oval C S-TECH WOOD roasted maple 1pc neck
S-TECH treated Maple was used for the AZ’s neck construction, a first. The neck's nitrogen-heating treatment increases the wood’s stability, durability, water resistance and tolerance of temperature changes. After extensive prototyping and trials, we concluded that 20.5mm thickness at the 1st fret and 22.5mm at the 12th fret was the optimal neck thickness for this process. The neck was then sealed with an oil finish which makes it feel similar to a well-played guitar neck.
In order to achieve supreme neck grip comfort, the fretboard edge was finished with a smooth curve that extends from the border between the fretboard and the neck to the surface of the fretboard. The detailed neck shape was precisely carved using a ball mill for ultimate consistency. The width measurements of the fretboard are 42mm at the nut and 57mm at the last fret. These dimensions allow for an easy grip in the lower register, and a more modern feel in the higher register.
The AZ's shallow back body contour and big forearm contour lets the guitar's body fit the player naturally, thus increasing playing comfort. The AZ's body has a deep waist and different radii on each body edge curve (3 mmR on body top/8 mmR on body back), making it easier to play in both standing or sitting positions.
Seymour Duncan® Hyperion™ Pickups
The AZ's custom Hyperion™ pickups were developed in collaboration with Seymour Duncan. Hyperion™ pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound and deliver a clear pick attack. From treble to bass, and from high-E string to low-E string, the overall tonal balance is evenly adjusted, and works well with various effect pedals.
Dyna-MIX 10 w/Alter switch
The Dyna-MIX 10 offers ten sound variations, and can easily switch from humbucker and single coil modes with just a flick of the mini switch. The Power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.
Ibanez T1802 Tremolo Bridge (made by GOTOH®)
The new T1802 bridge, a collaboration between GOTOH® and Ibanez, features machined titanium saddles and a machined steel tremolo block for a quick response, thick lows and rich highs. The 10.5mm string spacing allows for easy picking across strings, including techniques such as string skipping and hybrid picking. The snap and hold tremolo arm socket makes it easy to load a tremolo arm, and the arm torque adjuster enables fine torque adjustment without any tools. The 2-point floating tremolo system allows for a super smooth tremolo motion when either raising or lowering the pitch.
GOTOH H.A.P®-M machine heads
The AZ comes with GOTOH® MAGNUM LOCK® machine heads, which have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post) system allows for the adjustment of string posts for the appropriate tension of each string.
