IBANEZ PARTS - $50,000 inventory of brand new original factory Ibanez replacement parts covering most Japanese made shred guitars produced since 1987.



DETAILS / SHIPPING  / PAYMENT / ORDERING INSTRUCTIONS

PARTS LIST



Tremol-No - are finally in stock!! They are listed on the last line of the Misc section. These the small clamp correct for Ibanez guitars.

ESP Arming Adjusters - IN STOCK - This is the exact design as one half of an Ibanez Backstop but have beefy enough springs to adjust as strong as a Backstop, if not stronger. They can be installed between any 2 springs [if using 3 springs in the 1, 3, 5 holes], or run 2 of them if desired between all 3 springs. The instructions included [in Japanese] show it centered between 2 springs run in arrow formation. Like a Backstop they work best when installed on a flat level routed area parallel to the back or top [this rout is still found in the trem cavity of many of the body CNC programs, but not all] [the rout in Edge Pro equipped guitars is not long enough for either a Backstop or an Arming Adjuster in the 1570, but is in a VWH, check your cavity. The VWH rout is 2 3/8" [60mm] long]]. They're listed on the last line of the Misc section.



DETAILS

IF THERE IS A 0 IN THE PART LINE YOU NEED IT DOES NOT MEAN I DO NOT HAVE IT. THIS PAGE IS ONLY UPDATED A COUPLE TIMES A YEAR. IF THERE IS A 0 THE PART IS [OR WAS] ON BACK ORDER, OR IS QUITE POSSIBLY IN STOCK AT THIS TIME. YOU WILL SEE SEVERAL PARTS STARTING TO BE MARKED *DISCON*, THESE PARTS OR NO LONGER AVAILABLE NEW.

ALL ORDERING BY EMAIL

$10 MINIMUM ORDER

NO CREDIT CARD ORDERS UNDER $50, NO INTERNATIONAL CREDIT CARDS, SORRY.

ALL NEW JERSEY RESIDENTS MUST ADD 7% STATE TAX

Unless noted all parts are brand new factory Ibanez in factory packaging. Loose means taken out of bulk piece factory package, ie. Package of 12 Arm Holder Nuts.

I will order parts I don't have in inventory. You must understand parts can take 1 month to a year to come in. Parts not in distributor stock have to be ordered from Japan, and bottom line, Japan ships parts when Japan feels like it. I only stock parts and accessories for contemporary shred guitars, please don't write to ask about vintage parts unless they are still currently in use on similar models [check ibanez.com>parts] otherwise ebay or posting classified adds are the only way you'll find those parts.

You may upgrade any Edge Pro trem kit to locking studs for an additional $35 for the Locking Stud Mod Kit, or $44 for the Locking Studs with correct Locking Stud Inserts [anchors]. Cosmo trems are virtually impossible to get in perfect scratch free finish. If ordering cosmo expect there to be some very minor scratching flaws somewhere. Trems are factory radiused to 430mm. If you are ordering for a guitar with a different radius please let me know, ie. a JS radiused bridge is $10 more which just pays for the 10 shims needed to match the 250mm radius. NOTE - All Lo Pro prices have risen significantly as the distributor rolls in new inventory with much higher list prices. For example a Gold Lo Pro 6 now lists at $340 with Cosmo right behind at $320. LP7's are now listing at over $400.

If you are ordering parts you MUST include a DETAILED note listing the order and a CLEAR return address. I do not track parts orders in my Inbox, only guitars orders. Without a detailed note I have no idea what you ordered, and if your real name does not match your email display name, there is NO chance I'll find you, or even try to. Your money will be returned if I can read the return address when it's been buried on my desk for a month and you haven't written to ask if I got it.

Payment by personal check, US cash, Western Union [over $200 order only, add $10 pickup fee] or Paypal. All information needed will be provided by email.

Parts orders are shipped the day after payment received. I typically ship small US orders in a padded envelope First Class mail. Sometimes mail gets lost. If you do not opt for insurance and the mail is lost, please do not expect anything more than "I feel your pain" from me. That is why any order over $20 paid by Paypal I require you to purchase Insurance.

If paying by Paypal -
Under $20
$3 for First Class Mail with Delivery Confirmation,
no crying if it gets lost, It's mail, mail gets lost all the time.
or
$5 for FCM w/ DC and Insurance



Over $20
$5 for First Class Mail with Delivery Confirmation and Insurance



If paying by check - Any Amount
$2 for First Class Mail, no crying if it gets lost, It's mail, mail gets lost all the time.
$3 for FCM and Delivery Confirmation
$5 for FCM w/ DC and Insurance



Faster Options
$8 for Priority Mail with Delivery Confirmation and Insurance
$20 for Express mail insured up to $100

Large or bulky orders that will not fit in a padded envelope will cost between $8 and $15 for Priority mail insured.  I will have to quote these on an order by order basis.

International shipping by quote. I ship small parts by Airmail Letter Post [no insurance available]. Allow 5 - 30 days for delivery. Sometimes International mail is sloooow. If insurance is a priority it is only available on Priority mail and EMS, and the difference between the two is so minimal EMS is always the better option, and what I will typically quote. EMS [Express Mail Service] starts at $25 and up, where available. Allow 5 - 10 days, it's only Express for "mail". UPS Express starts at $50, allow 2-3 days, it IS Express but you pay for it, plus a brokerage fee on your end. Postal code needed to calculate.



beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes) beammeup.gif (3723 bytes)



PARTS

Current inventory as of 12/24/09

Trems
Trem Parts

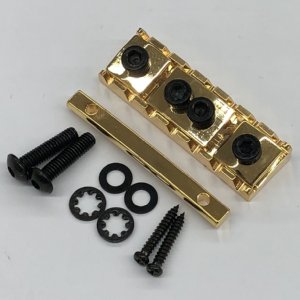

Nuts
Nut Parts
Tuners
Misc
Pickups



DESCRIPTION DETAIL PART # STOCK BACK ORDER PRICE

Trems

Edge Pro 6’s Cosmo Black 2EL1J11K 0 5 $265.00
" Chrome 2EL1J11C 3   $255.00
" Gold 2EL1J11G 4   $275.00
" Power Cosmo 2EL1J11PC 1   $265.00
" Cosmo Black - Lefty 2EL1J11LK 0 1 $275.00
" Gold - Lefty 2EL1J11LG 0 1 $280.00
" Chrome - JS - Lefty 2EL1J21LC 0 1 $280.00
Edge Pro 7’s Cosmo Black 2EL1J71K 3   $300.00
" Chrome 2EL1J71C 5   $300.00
" Power Cosmo - APEX 2EL1J71WPC 1   $400.00
Lo Pro 6’s Cosmo Black 2LE1R31K 5   $275.00
Diagram Chrome 2LE1R31C 5   $265.00
Manual Gold 2LE1R31G 0 5 $285.00

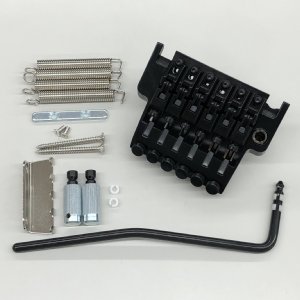

Full Kit Price Black 2LE1R31B 2   $255.00
Available w/o Kit Vintage - Brushed 2LE1R31V 5   $275.00
" Power Cosmo - DISC 2LE1R31PC 3   $285.00
" Power Nickel 2LE1R31PN 4   $265.00
" Power Gold 2LE1R31PG 1   $300.00
" Violet Chrome - JS2K 2LE1JS37VC 1   $350.00
Lo Pro 7’s Cosmo Black 2LE1UV31K 3   $300.00
Full Kit Price Chrome 2LE1UV31C 2   $315.00
Available w/o Kit Power Cosmo 2LE1UV31PC 1   $325.00
" Black 2LE1UV31B 1   $300.00

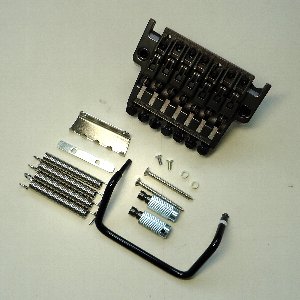

Available w/o Kit Power Cosmo - K7 2LE1K731PC 0 1 $400.00
Edge 6’s Cosmo Black 2ED1R31K 3   $245.00
Diagram Chrome - DISCON 2ED1R31C 8   $245.00
Manual Gold - DISCON 2ED1R31G 2   $300.00
Full Kit Price Black 2ED1R31B 1   $235.00
Available w/o Kit Power Cosmo 2ED1R31PC 5   $235.00
Edge 7’s Cosmo - DISCON 2ED1UV31K 0   $300.00
Edge Zero  Cosmo Black 2TRX5AA001 2   $280.00
Edge Zero  Gold 2TRX5AA002 0 1 $280.00
Zero Resistance Cosmo Black 2ZRT1RNK2D 0 1 $280.00
" Black 2ZRT1RNB2 1   $320.00
ZR2 Cosmo Black 2TRX5AC001  1   $300.00
ZR 7 String Cosmo Black 2ZRT1RN7K2 1   $360.00
Fixed Lo Pro Chrome / JS2000 2GB1LEJSC 1   $215.00
" Black / MTM 2GB1FLEB 1   $250.00
Fixed - Edge 8 string Black / 2228 2TU00A0001  1   $315.00
Gibraltar III Nickel 2GR1W311N 2   $40.00


Trem Parts

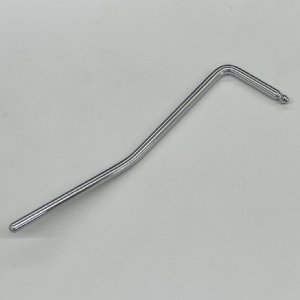

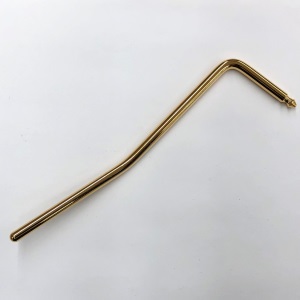

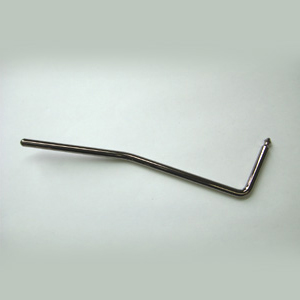

Trem Arm Edge/Lo Pro/Edge Pro 2LE21B 13   $16.00
" ED / LP / EP / Lefty 2LE21LB 5   $15.00
" Loose 2LE21B 1   $15.00
" JS - Blackdog 2LE21B-JSBDG 9   $50.00
" K7 - Apex - U Bar 2LE21UB 3   $50.00
" Edge Pro 2 / Edge 3 2EL2C1B 0 13 $14.00
" EP 2 / ED 3 - Lefty 2EL2C1LB 3   $14.00
" ZR 2ZR21N 7   $12.00
" ZR2 - Edge Zero 2TRX5BC001 5   $14.00
" Lo TRS II 2CL21B 4   $16.00
" Lo TRS II - Lefty 2CL21LB 2   $18.00

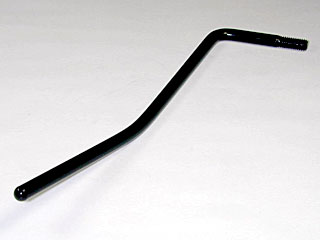

" Lo TRS 2LT21B 8   $20.00
Sure Grip Arm Sleeve - Loose AG20 1   $5.00
Trem Arm Bushings Bag of 12 / ED/LP/EP 2LE211 13   $15.00
" Bag of 2 / ED/LP/EP 2LE211 12   $4.00
" EP II / ED 3 - Singles 2ED2CPB 17   $2.00
" ZR / EZ - Singles 2ZR212 42   $1.00
Arm Bar Tube  ZR  2ZR29 9   $10.00
Arm Holder Nut ZR 2ZR210 120   $2.00
Torque Adjust Cap ZR 2ZR211 10   $10.00
Arm Holder Cup ZR 2ZR213 6   $5.00
Arm Holder  EZ / ZR2 ???? 0   $0.00
Arm Holder Nut EZ / ZR2 ???? 0   $0.00
Torque Adjust Cap EZ / ZR2 2TRX5BC002 9   $6.00
Downshifter ZR - D Tuner 2ZR214 2   $20.00
Arm Holder - ED/LP/EP Cosmo 2LE213K 12   $14.00
EDGE / LP / EP Chrome 2LE213C 3   $12.00
" Gold 2LE213G 6   $14.00

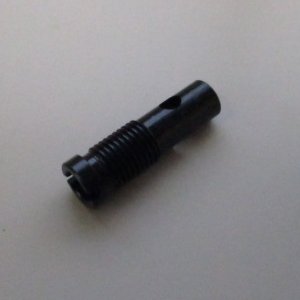

" Black - DISCONTINU 2LE213B 2   $14.00
Arm Holder Pre 1987  Chrome  2LE213C 6   $14.00
" Gold  2LE213G 5   $14.00
Arm Holder Nut ED / LP / EP 2LE214 15   $2.00
Arm Holder Spring ED / LP / EP 2LE215 8   $2.00
Arm Holder Screw ED / LP / EP 2LE216 33   $2.00
Lo TRS Saddle Cosmo - 1 / 6 2LT22K1 1   $22.00
Lo TRS Saddle Cosmo - 2 / 5 2LT22K2 1   $22.00
Lo TRS Saddle Cosmo - 3 / 4 2LT22K3 1   $22.00
Lo TRS Saddle Black - 1 / 6 2LT22B1 1   $22.00
Lo TRS Saddle Black - 2 / 5 2LT22B2 1   $22.00
Lo TRS Saddle Black - 3 / 4 2LT22B3 1   $22.00
Lo TRS II Saddle Cosmo - 1 / 6 2CL22K1 2   $25.00
Lo TRS II Saddle Cosmo - 2 / 5 2CL22K2 1   $25.00
Lo TRS II Saddle Cosmo - 3 / 4 2CL22K3 1   $25.00
Lo TRS II Saddle Black - 1 / 6 2CL22B1 1   $25.00
Lo TRS II Saddle Black - 2 / 5 2CL22B2 1   $25.00
Lo TRS II Saddle Black - 3 / 4 2CL22B3 1   $25.00
Lo TRS II Saddle Chrome - 1 / 6 2CL22C1 1   $25.00
Lo TRS II Saddle Chrome - 2 / 5 2CL22C2 1   $25.00
Lo TRS II Saddle Chrome - 3 / 4 2CL22C3 1   $25.00
Edge 3 Saddle Cosmo - 1 / 6 2ED2C2K1 1   $27.00

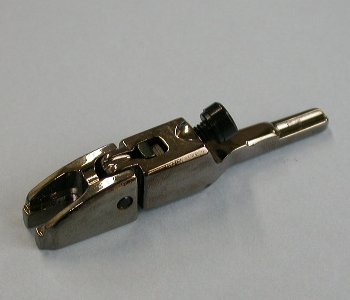

Edge 3 Saddle Cosmo - 2 / 5 2ED2C2K2 1   $27.00
Edge 3 Saddle Cosmo - 3 / 4 2ED2C2K3 1   $27.00
Edge 3 Saddle Black - 1 / 6 2ED2C2B1 1   $27.00
Edge 3 Saddle Black - 2 / 5 2ED2C2B2 0 1 $27.00
Edge 3 Saddle Black - 3 / 4 2ED2C2B3 1   $27.00
Edge 3 Saddle Chrome - 1 / 6 2ED2C2C1 1   $27.00
Edge 3 Saddle Chrome - 2 / 5 2ED2C2C2 1   $27.00
Edge 3 Saddle Chrome - 3 / 4 2ED2C2C3 1   $27.00

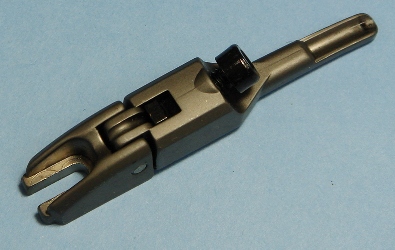

Edge 3 Saddle Power Cosmo - 1 / 6 2ED2C2P1 1   $27.00
Edge 3 Saddle Power Cosmo - 2 / 5 2ED2C2P2 1   $27.00
Edge 3 Saddle Power Cosmo - 3 / 4 2ED2C2P3 1   $27.00
Edge Saddle Cosmo - Bare 2ED22K 1   $18.00
Edge Saddle Cosmo - Complete YEH336CK1 0   $22.00
Edge Saddle Chrome - Bare 2ED22C 1   $18.00
Edge Saddle Chrome - Complete YEH336C1 7   $22.00
Edge Saddle Gold - Complete YEH336G1 8   $24.00

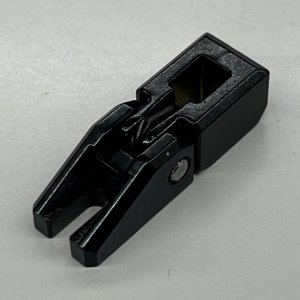

Edge Saddle Black - Bare 2ED22B 2   $20.00
Edge Saddle Black - Complete YEH336B1 0   $22.00
Lo Pro Saddle Cosmo - Bare 2LE22K 0   $18.00
Lo Pro Saddle Cosmo - Complete YEH338CK1 2   $22.00
Lo Pro Saddle Chrome - Bare 2LE22C 2   $18.00
Lo Pro Saddle Chrome - Complete YEH338C1 0 3 $22.00
Lo Pro Saddle Gold - Bare 2LE22G 5   $20.00
Lo Pro Saddle Black - Bare 2LE22B 3   $18.00
Lo Pro Saddle Power Cosmo - Bare 2LE22PC 3   $24.00
Lo Pro Saddle Power Gold - Bare 2LE22PG 1   $24.00
Lo Pro Saddle Violet Chrome - Bare 2LE22VC 4   $18.00
Lo Pro Saddle Violet Chrome - Comp 2LE22VC 0   $22.00
Edge Pro Saddle Cosmo - Complete 2EL22K 4   $24.00
Edge Pro Saddle Chrome - Complete 2EL22C 6   $24.00
Edge Pro Saddle Gold - Complete 2EL22G 3   $24.00
Edge Pro Saddle Black - Complete 2EL22B 0   $24.00
Edge Pro Saddle PC - Complete 2EL22PC 5   $24.00
Edge Pro Saddle VC - Complete 2EL22VC 1   $24.00
Edge Pro Saddle VS - Complete 2EL22VS 1   $24.00
Edge Pro II Saddle Cosmo - Complete 2EL2C2K 3   $24.00
Edge Pro II Saddle Chrome - Complete 2EL2C2C 3   $24.00
Edge Pro II Saddle Black - Complete 2EL2C2B 3   $24.00

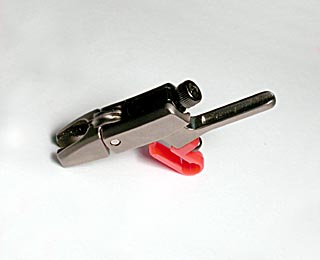

Edge Pro II Saddle PC - Complete 2EL2C2PC 2   $24.00

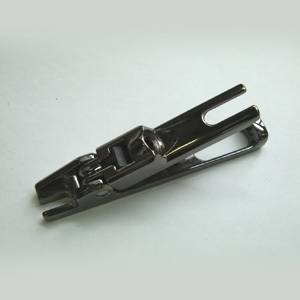

Edge Zero Saddle Cosmo - Complete 2TRX5BA006 2   $32.00
ZR Saddle Cosmo - Complete 2ZR22K 2   $28.00
" Black - Complete 2ZR22B 2   $28.00
Saddle Holder Plate ED / LP / EP 2LE29 2   $15.00
" Screws ED / LP / EP 2LE210 13   $1.00
Saddle Shims ED / LP / EP .005" 500   $1.00
" " .008" 50   $1.00
" " .010" 100   $1.00
" " .012" 100   $1.00
" - Offset ZR / EZ .005" 300   $1.00
" " .008" 50   $1.00
" " .010" 100   $1.00
" " .012" 50   $1.00
Saddle Tailpiece Lo Pro 2LE219B 3 12 $3.00
String Lock Blocks Edge / Lo Pro 2LE23 20   $5.00
" Edge Pro / EP2 2EL23 17   $6.00
" ZR  / EZ 2ZR23 18   $3.00
" EDGE 3 2ED2C3 12   $4.00
" Lo TRS 2LT23 23   $6.00
" Lo TRS II 2CL23 18   $6.00
Lock Block Spring Edge Pro / EP2 2EL231  10   $1.00
String Lock Screw Edge 2ED24 4   $2.00
" Lo Pro 2LE24B 18   $4.00
" Lo Pro 2LE24C 13   $4.00
" Lo Pro 2LE24G 14   $4.00
" Edge Pro / EP2 2EL24 12   $3.00
" ZR  / EZ 2ZR24 13   $2.00
" EDGE 3 2ED2C4 14   $2.00
" Lo TRS 2LT24 18   $2.00
" Lo TRS II 2CL24 8   $2.00
Saddle Lockdown Screw ED / LP / EP 2EL25 80   $2.00
" ZR 2ZR25 20   $2.00
" EDGE 3 / TRS 2ED2C5 6   $3.00
Lock Screw Washer   2LE26 32   $1.00
Fine Tuner ED / LP / EP 2LE27B 18   $4.00
" EP2 / ED3 2EL2C7 13   $2.00
" ZR 2ZR27 4   $3.00
" EZ  2TRX5BA002 6   $2.00
" Lo TRS2 2CL26 6   $2.00
" Lo TRS 2LT26 8   $3.00
Fine Tuner Spring ED / LP 2LE28 2   $14.00
Trem Stud - ED/LP/EZ Redesigned-Super Stud 2LE2B 160   $12.00
" EP - Non Locking 2EL2B 80   $8.00
" " - " - Close Tollerence 2EL2K 80   $12.00
" EP2 / EDGE 3 2EL2CB 4   $8.00

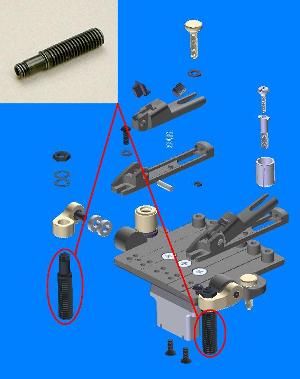

" ZR 2ZR2B 6 2 $10.00
" Lo TRS 2LT2B 2 3 $7.00
" Lo TRS II 2CL2B 5   $5.00

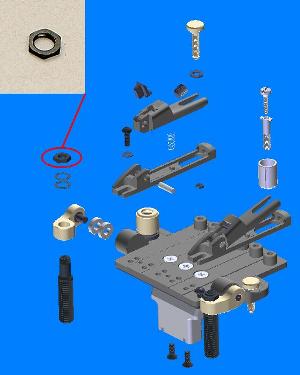

Stud Nut ZR 2ZR2B1 11   $1.00
Stud Nut Washer ZR 2ZR2B2 14   $1.00
Stud Insert ED / LP 2LE2A 10   $10.00
" EP / ZR 2EL2A 4   $10.00
Set Screw For Stud Mod - Ground 8M-1.25-6mm 120   $5.00
